19″ VGA Console Cat5 KVM 8port

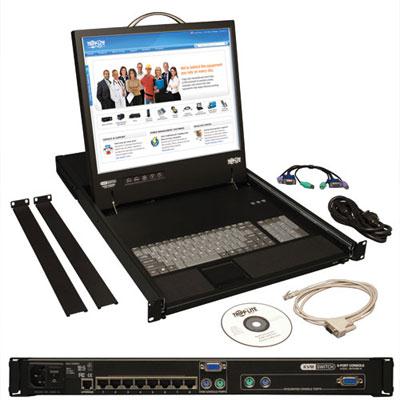

Tripp Lite’s B070-008-19 NetCommander Rackmount Console KVM switch is a cost effective and highly flexible system for controlling up to 128 computers from a single 19″ display console. This console can be cascaded with Tripp Lites stand-alone B072 NetCommander series KVM switches. Switching between attached servers can be accomplished via the On Screen Display (OSD) menu or Hotkey commands. Utilizing Tripp Lite’s B078-101-Series server interface units, KVM cabling is kept to a minimum via inexpensive Cat5/5e/6 patch cables. Servers can be located up to 100 ft. away from the switch. Add Remote access over IP by connecting Tripp Lite B051-000 Remote IP Access Unit. The B070-008-19 Console KVM switch supports a wide variety of software platforms, including: MAC, DOS, Windows, Linux, Unix, SUN (USB) and BSD. Password feature provides additional security to prevent unauthorized access to attached computers. All rackmount hardware is included, and is designed for easy, one person installation. Fits into any rack from 27″ to 42″ deep. 2-post rackmounting available using Tripp Lite’s B019-000. Key Features 8-port Cat5 KVM Switch with built-in 19″ Monitor, Keyboard, and Mouse Supports resolutions up to 1280 x 1024 (60Hz) Connect and control up to 128 computers locally or remotely Standard EIA 19″ rackmounting Use in racks from 27″ to 42″ deep OSD menu for intuitive operation and easy control USB and PS/2 mouse/keyboard support Password protection and auto-logout features Firmware upgradeable Hot-swappable: disconnect and reconnect USB computers w/o reboot Easy port selection via On Screen Display (OSD) or Hotkey commands Rugged ball bearing slides offer long life usage Uses readily availabe Cat5/5e/6 patch cables to locate computers up to 100 ft. from the KVM IP upgradeable using Tripp Lite B051-000 IP Remote Unit 1 Year Limited Warranty System Requirements PS/2 or USB computer / server (1) B078-101-PS2 (PS/2) or B078-101-USB (USB) Server Interface Unit is required for each connected computer/server Package Includes B070-008-19, 8-port Cat5 KVM 19″ Console Power Cord Serial Firmware Upgrade Cable KVM/Console Jumper cable Owners manual CD
