1500VA UPS Smart LCD AVR 120V

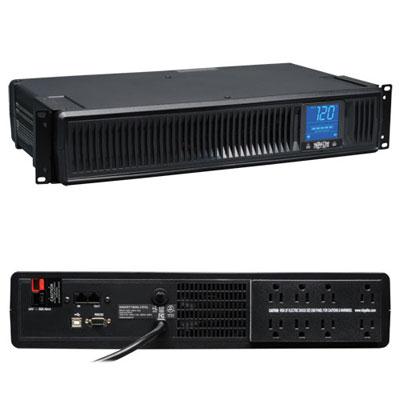

Tripp Lite’s SMART1500LCDXL Line-Interactive UPS System offers network-grade voltage regulation, surge suppression and long-lasting battery support, ideal for network equipment, phone systems, desktop PCs and home entertainment systems. Uninterruptible Power Supply / UPS system provides battery derived AC output to maintain continuous operation of connected equipment without data-loss during power failures and severe voltage fluctuations. Runtime is expandable with one additional BP24V15RT2U external battery pack. Interactive LCD display offers detailed site voltage and UPS status information, plus a variety of UPS control options. High 97% efficient line power mode operation offers reduced UPS energy consumption and BTU heat output. Automatic Voltage Regulation / AVR circuits boost brownouts and reduce overvoltages from 75V to 147V to safe 120V nominal levels without using battery power. Included mounting accessories enable 2U horizontal rackmount installation in 2 and 4 post racks or upright tower installation. Built-in USB and DB9 serial port enables optional unattended system shutdown in case of extended power failure using PowerAlert UPS management software. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Built-in data line surge suppression jacks offer protection for equipment with single-line dialup, DSL or network Ethernet connection. Key Features SMART1500LCDXL Line Interactive UPS offers network-grade voltage regulation, surge suppression and long lasting battery support Space-saving angled NEMA 5-15P input plug; 6ft / 1.8m line cord 8 battery-supported NEMA 5-15R outlets Maintains operation of connected equipment during power failures and voltage fluctuations Runtime is expandable with one additional BP24V15RT2U external battery pack LCD display reports numeric and icon-based UPS status and site power data Select and scroll buttons enable access to UPS control, operating and LCD display settings Numeric display reports Input Voltage, Output Voltage, Battery Charge Percentage, Output Load Percentage, Output Load Wattage and Estimated Minutes Runtime data Icon-based display items include 5 “bar” battery capacity, UPS operating status, replace battery and voltage regulation status Control-mode LCD options enable external battery configuration, alarm on/off control, self-test and LCD brightness Front-panel LCD screen rotates for horizontal or vertical installation options 97% line power mode efficiency operation Line Interactive Automatic Voltage Regulation / AVR circuits correct brownouts and overvoltages from 75 to 147V Included mounting accessories for 2U rackmount and tower installation USB and DB9 serial ports enable optional unattended system shutdown using PowerAlert UPS management software available via free download from www.tripplite.com HID-compliant USB interface enable integration with built-in power management and auto shutdown features of Windows and Mac OS X DB9 serial port also supports contact closure signaling for on-battery and power-restored messaging Built-in data line surge suppression jacks offer protection for equipment with single-line dialup or PoE compatible network ethernet connection Package Includes SMART1500LCDXL UPS system USB, serial & telephone cabling Rack/Tower mounting kit Owner’s manual
