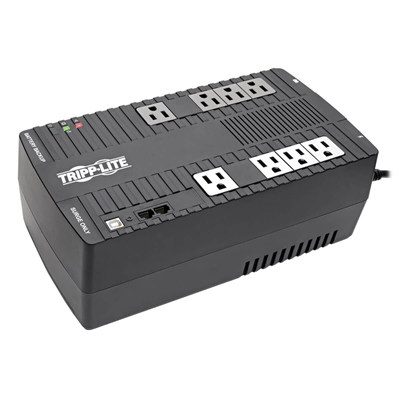

700VA AVR UPS TEL DSL 120V

OUTPUT Output Volt Amp Capacity (VA) 700 Output Watt Capacity (watts) 350 Nominal Output Voltage(s) Supported 115V; 120V Frequency compatibility 60 Hz Output voltage regulation (line mode) +8%, -21% Output voltage regulation (Battery mode) 115V (+/- 5%) Built-in UPS output receptacles 8 5-15R outlet(s) Surge suppression only outlets 4 UPS outlets, 4 surge-only outlets Output AC waveform (AC mode) Sine wave Output AC waveform (battery mode) PWM sine wave INPUT Rated input current (at maximum load) 12A Nominal Input Voltage(s) Supported 120V AC UPS input connection type 5-15P; Space saving right angled input plug UPS Input cord length (ft.) 6 UPS Input cord length (m) 1.8 Recommended Electrical Service 15A 120V BATTERY Full load runtime (minutes) 2.3 min. (350w) Half load runtime (minutes) 8.5 min. (175w) DC system voltage (VDC) 12 Battery Access Battery access door Battery replacement description Hot-swappable, user replaceable batteries VOLTAGE REGULATION Voltage regulation description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147 Overvoltage correction Input voltages between 128 and 147 are reduced by 12% Undervoltage correction Input voltages between 83 and 104 are boosted by 14% LEDS ALARMS & SWITCHES LED Indicators 2 LEDs indicate power status and overload/check battery status Alarms Audible alarm indicates power-failure and overload status Switches Combination switch controls on/off power status and self-test operation SURGE / NOISE SUPPRESSION UPS AC suppression joule rating 420 UPS AC suppression response time Instantaneous UPS Dataline suppression 1 line TEL/DSL (1 in / 1 out) EMI / RFI AC noise suppression Yes PHYSICAL Installation form factors supported with included accessories Tower; Ultra-compact desktop; Wallmount (using keyhole mounting tabs) Primary form factor Desktop UPS / Power Module dimensions in primary form factor (height x width x depth / inches) 3.5 x 11.3 x 6 UPS / Power Module dimensions in primary form factor (height x width x depth / cm) 8.9 x 28.7 x 15.2 UPS / Power Module weight (lbs) 11 UPS / Power Module weight (kg) 5 UPS Shipping dimensions (height x width x depth / inches) 4.8 x 13.5 x 8.8 UPS Shipping dimensions (height x width x depth / cm) 12.1 x 34.3 x 22.2 Shipping weight (lbs) 12 Shipping weight (kg) 5.4 UPS housing material ABS ENVIRONMENTAL Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius Relative Humidity 0 to 95%, non-condensing AC mode BTU / hr. (full load) 30 COMMUNICATIONS Communications interface USB (HID enabled) PowerAlert software Free download from www.tripplite.com Communications cable USB interface cable included WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications LINE / BATTERY TRANSFER Transfer time 2-4 milliseconds Low voltage transfer to battery power (setpoint) 83 High voltage transfer to battery power (setpoint) 147 SPECIAL FEATURES Grounding lug Included Cold Start (startup in battery mode during a power failure) Cold-start operation supported High availability UPS features Hot swappable batteries Green & high efficiency features Greater than 95% efficiency – GREEN UPS CERTIFICATIONS UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI) WARRANTY Product Warranty Period (U.S., Canada & Puerto Rico) 3 years Connected Equipment Insurance (U.S., Canada & Puerto Rico) $100,000 connected equipment insurance
