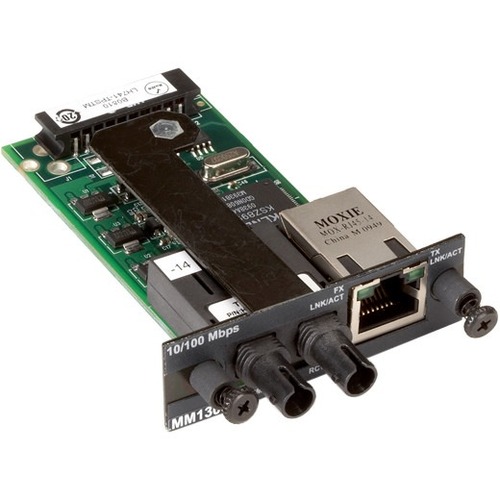

Black Box LH741-TPSTM Transceiver/Media Converter

Convert 10- or 100-Mbps segments between twisted-pair and multimode fiber in half- or full-duplex mode. House the modules in your choice of five chassis (LE7401A-R2, LE7404A, LE7408A, LE7412A, LE7412A-DC). You can install any combination of modules in any chassis, giving you complete flexibility.

The FiberAlert feature minimizes the problems associated with the loss of one strand of fiber cable. If a strand goes out, the local site administrator is notified of a fault and can quickly determine where it is located.

The LinkLoss feature enables you to identify problems on the fiber segment from the twisted-pair side. You can also identify problems on the twisted-pair segment from the fiber side.

An internal two-position switch on the twisted-pair port eliminates the need for a crossover cable. Just move the switch to the appropriate setting on the module before installing the card.

Choose from fiber modules in the Modular Media Converter family that support 10-/100-Mbps Ethernet on the copper side and multimode or single-mode on the fiber side. Use these modules to add distance-up to 40 kilometers-to your network. Single-strand fiber modules send and receive over one single-mode fiber strand, so you save on infrastructure costs.

• Meet the multiple network connectivity needs of today’s network environment with this 2 transceiver/media converter
• Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
• With 100Base-X technology get up to 100Mbps data transfer rate over supported network cable
• Takes minimal energy and effort to get installed internally
