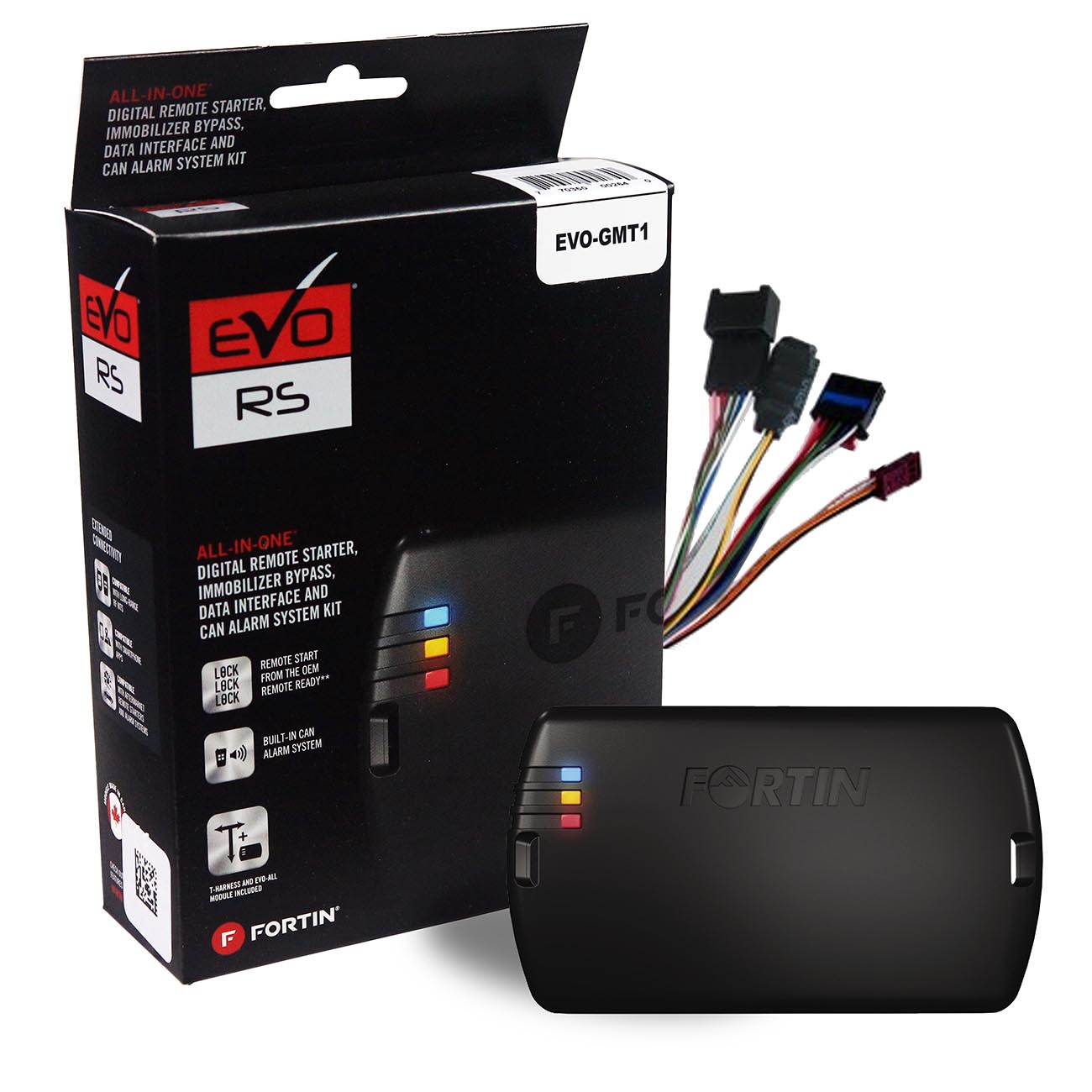

Fortin Remote Start Module and T-Harness for ’10-’22 GM Standard-Key Vehicles

Remote Start Module & T-Harness Combo for ’10-’22 Chevy, Buick, GMC & Opel Standard-Key

1 x Factory Fit Gateway style T-Harness for easy install.

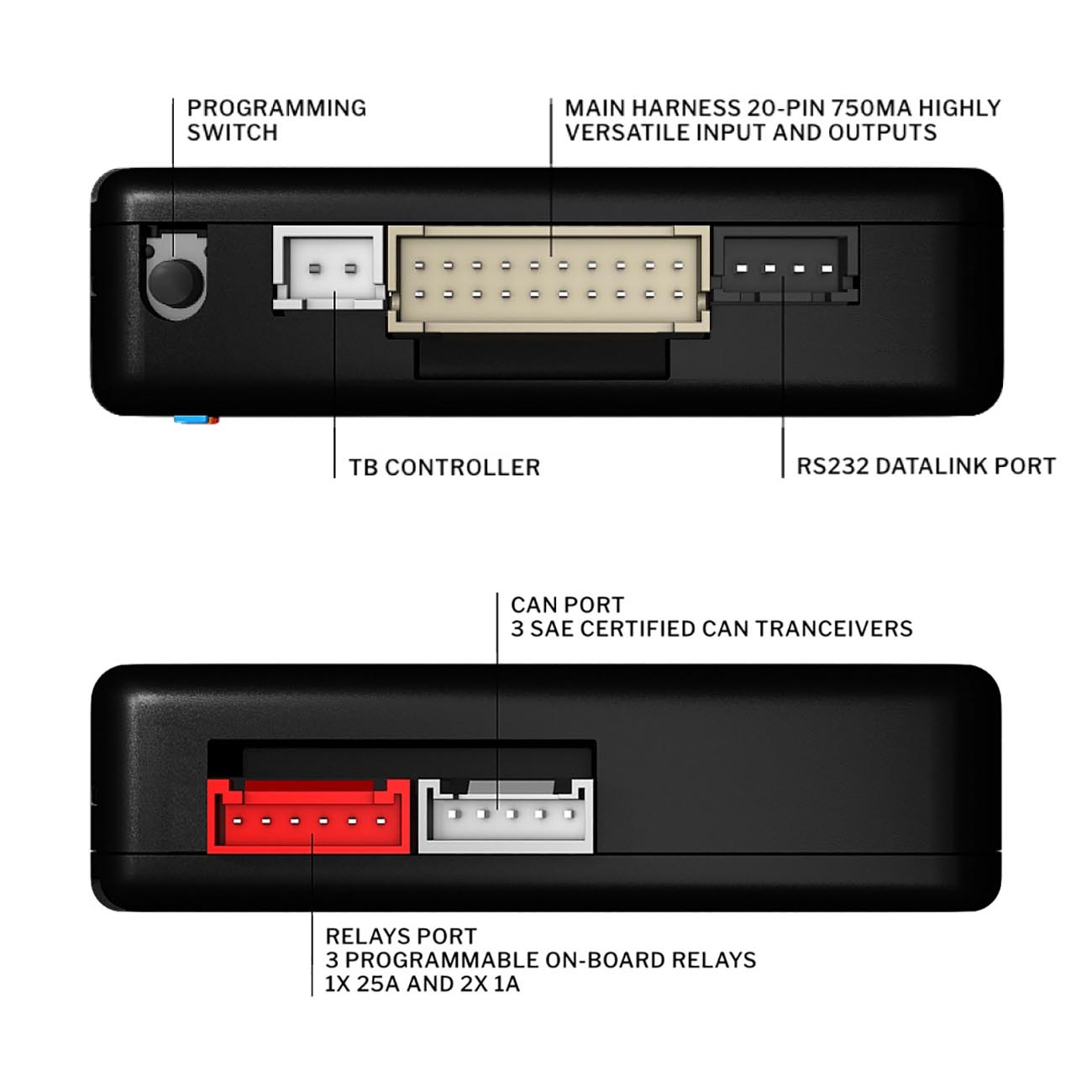

1 x 2-way datalink port for data-to-data (RS-232) communication with compatible remote-starters and security-systems.
1 x 20 Pin general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems.
Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly.

Full Immobilizer Bypass
Convenience Functions Control
Largest Remote Start from the OEM Remote Function Coverage (3x Lock or Lock-Unlock-Lock)

PRODUCT SPECIFICATIONS:
3 x CAN-Bus controllers.
3 x General purpose controllers (J1850, Class 2, encrypted key etc.).
3 x Programmable Circuit-Board Relays
1 x On-board relay (SPDT).
1 x On-board relay (DPDT).
1 x Analog controller 0-12VDC @ 20mV steps (MUX).

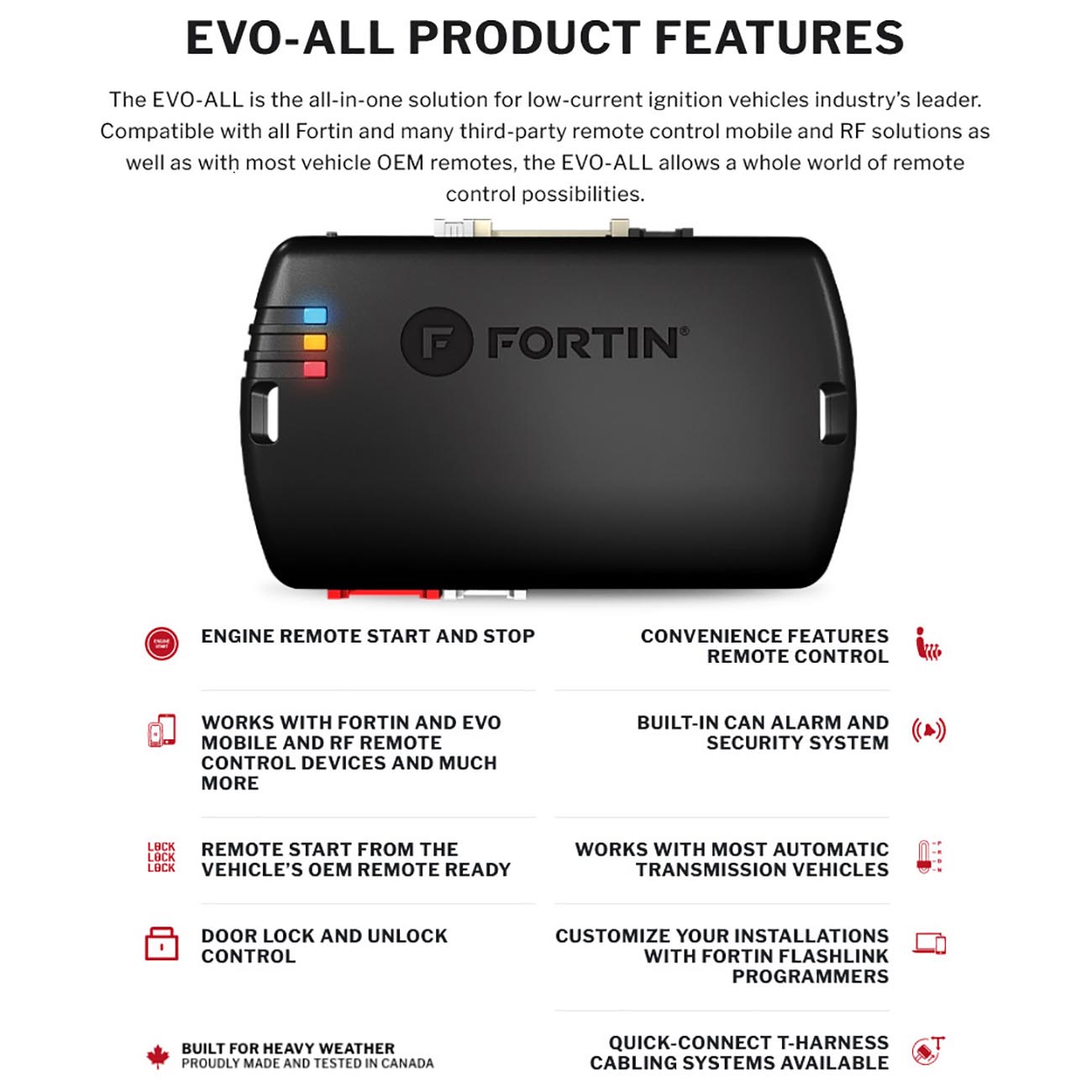

Advanced Features:
Built-In Alarm System
Stand Alone Remote Starter
OEM Remote Monitoring
3X Lock Remote Starter

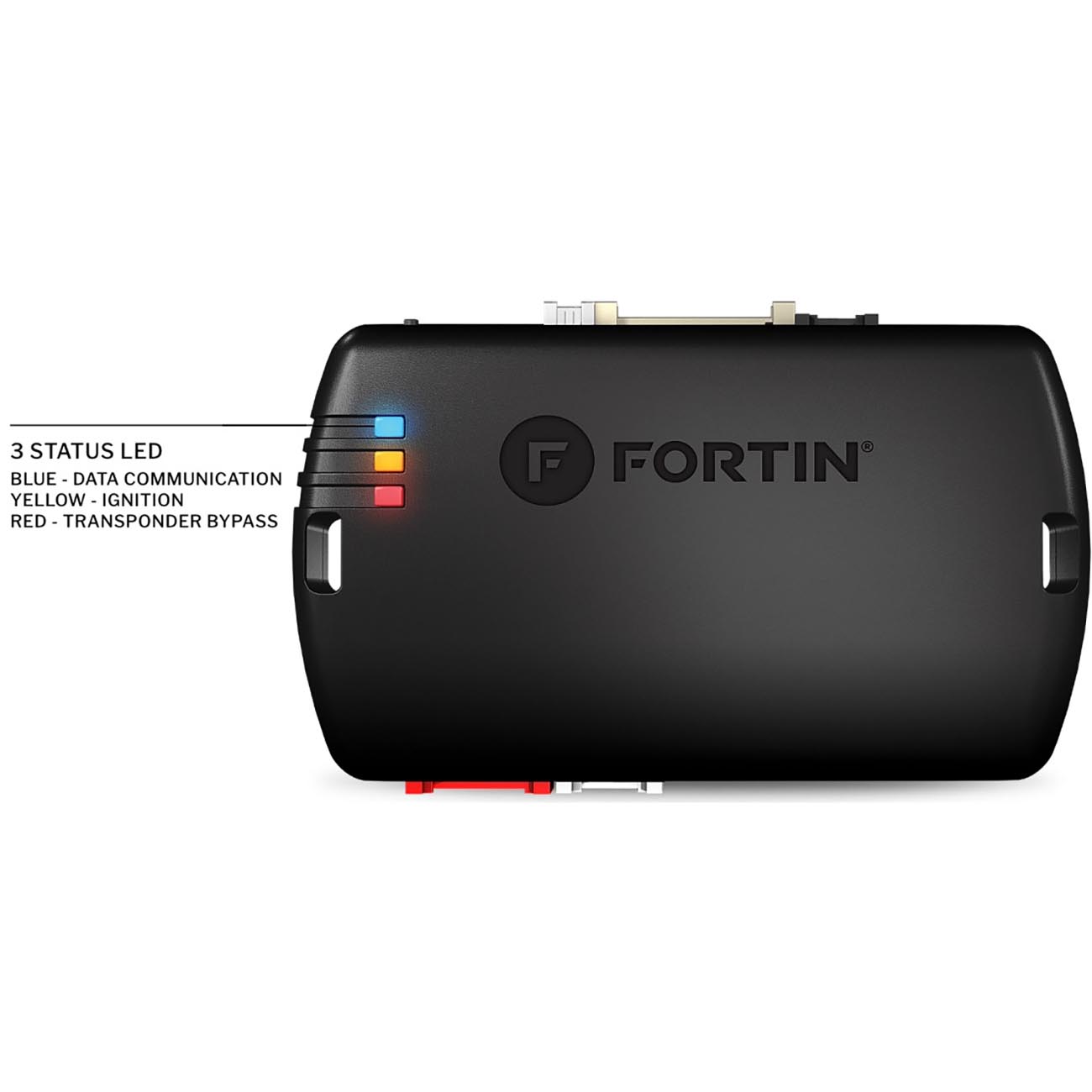

(3) On-board LEDs for simplified programming and diagnostics
Factory Fit T-Harness for easy install
2-way datalink port – compatible remote-starters & security-systems
20 Pin plug for non-datalink remote-starters/security-systems
Self-Learning algorithm auto detects the vehicle during programming

Works with Flash Link Manager, Telematic & GPS Modules, External Triggers, RF kits
& Sensor Modules
