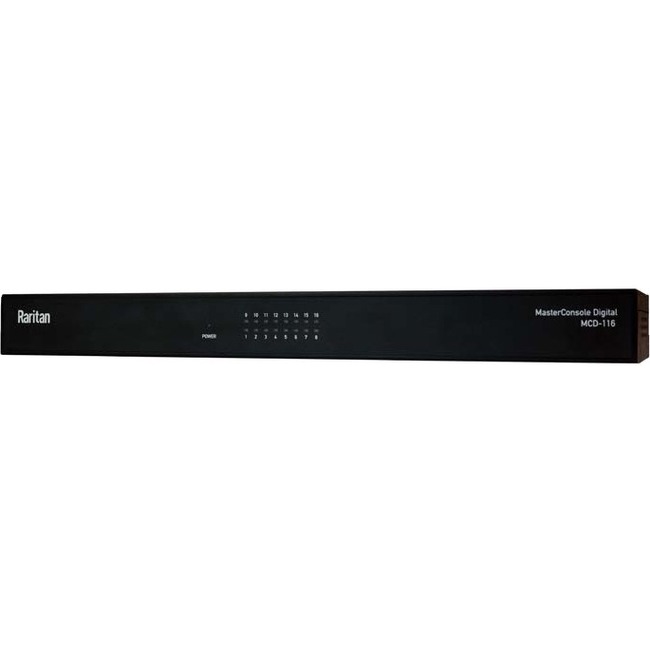

Raritan MCD-216 KVM Switchbox

Raritan MCD-216 KVM Switchbox

$1,659.92

Out of stock

Compare

Raritan MCD-216 – MasterConsole Digital – Next Generation Cat5 KVM switch

Raritan MCD-216 MasterConsole Digital KVM is a dual-user switch to used to control multiple servers. It features KVM ports for 16 servers and can be cascaded 2 levels to support up to 512 connections at distances up to 150 feet (45 meters). Connecting to a computer is made easier with the use of standard Category 5/6/6e cables. MCD-216 provides a friendly OSD (On-Screen Display) interface and hotkeys for quick and easy access connected computers.

Raritan’s MCD-216 is ideal for small to midsized businesses (SMB) who need to have a centralized point of access to multiple servers without the expense and clutter of a dedicated keyboard, mouse, and monitor for each computer or server. MCD-216 supports the highest HD video resolution of up to 1920×1080 via standard Category 5/6/6e cabling. The multi-format video interface supports both Analog – VGA and Digital – DVI, HDMI and DisplayPort. Stereo audio is also supported by using VGA combo cables or MCD-216’s HDMI Computer Interface Modules (CIMs).

Overview

Supports HDMI/DVI/DP/VGA video and stereo audio

MCD-216 MasterConsole Digital supports severs with both analog (VGA) and digital video: HDMI, DVI, and DisplayPort (DP). Audio is supported by Raritan’s MDCIM-HDMI or MDUTP VGA KVM combo cables.

High-definition video support up to 1920×1080

MCD-216 supports 1920 x 1080 video resolutions at 150 feet.

Two Users can manage 16 servers

Dual users user can manage 16 servers connected to MCD-216. Users can also expand up to 512 servers by cascading the units.

Intuitive On-Screen Display

Plug-and-play installation, auto-configuration, and easy-to-use on-screen displays. Targets can be labeled with device names for easier server selection from the OSD.

AutoScan / AutoSkip

AutoScan allows users to scan servers at variable rates for effortless monitoring. AutoSkip allows users to bypass inactive channels.

Cascading for Expansion

MCD-216 can be cascaded 2 levels, by using Raritan’s MDCIM-DVI or MDUTP cables, to control up to 512 servers

Integrated Switch & Console Drawer

Raritan MasterConsole Digital series is also available as a space-saving 17″ Console Drawer with an Integrated KVM Switch (MCD-LED)

Additional Features

  • Next generation Cat5 interface supports digital & analog video interfaces and audio: MCD-216 MasterConsole Digital KVM Switch is the next generation of Raritan Cat5 KVM switches. It supports dual user control of up to 16 servers.
  • Space-Saving Design: MCD-216 is only 1U of rack space in height
  • Cross-Platform and Hardware Independent: MCD-216 works with a mixture of servers that have USB keyboard/mouse interfaces and HDMI/DVI/DP digital video interfaces or analog VGA.,MDCIMs are available for support of various servers and devices in your data center including MS-DOS, Windows 7/8/8.1/10, Linux (Red Hat, Novell Suse), Macintosh OS9, OSX and SCO UNIX.
  • “keep-alive” technology: MCD-216 server interface cables (MDCIMs) with “keep-alive” technology allow users to add, remove and hot-swap CIMs without interruption to the live servers. MDCIMs also support DDC, DDC2, and DDC2B.
  • Cat5 Simplicity: Utilizes Cat5e/6/6e cabling to carry the KVM signaling from the server (via MDCIMs) to a KVM switch.
  • Servers can be labeled with server’ names: Allows easier server selection from the on-screen menu.

  • Quickly switches between sources without physical access
  • Get reliable connectivity between 16 computers and 2 local users
  • Up to 1920 x 1080 video resolution
  • Unhindered connections with USB-compatible devices are ensured by the built-in USB port.
  • KVM Switchbox can be mounted as rack-mountable
Weight 7.6000 lbs
Dimensions 22.00 × 12.30 × 5.40 in
Depth

5.9
Product Model

MCD-216
Weight (Approximate)

4.43 lb
Product Name

MCD-216 KVM Switchbox
Manufacturer

Legrand Group
Form Factor

Rack-mountable
Rack Height

1U
Brand Name

Raritan
Product Type

KVM Switchbox
Width

17.3
Height

1.7
UPC

785813060525
MPN

MCD-216
Brand

Legrand Group
